Welcome to the Earthdata Forum! Here, the scientific user community and subject matter experts from NASA Distributed Active Archive Centers (DAACs), and other contributors, discuss research needs, data, and data applications.
by dem1 » Tue Feb 24, 2026 12:16 pm America/New_York
Hi,
It seems that CLDICE is not raised the same way for VIIRS NOAA-21 than for NOAA-20: with NOAA-21 strong clouds are not flag CLDICE, and also CLDICE seems not well flag in glint areas. On the other hand, the ATMFAIL flag is more raised with NOAA-21.
In our GlobColour project we calculate a Cloud Fraction (%) product based on CLDICE, and for NOAA-20 we obtain for example for 2026-02-23:
where for NOAA-21 we obtain:
Is it expected? If yes is it documented somewhere? I searched in reprocessing docs but found nothing.
Do you know if we can implement a workaround for NOAA-21 to have a CLDICE similar to NOAA-20?
Thanks for your help,
Julien
Last edited by dem1 on Mon Mar 16, 2026 12:04 pm America/New_York, edited 2 times in total.
by dem1 » Mon Mar 16, 2026 12:09 pm America/New_York
Hi Jakob,
Sorry for the late reply.
I check the date and sorry I did a mistake, in fact it's 2026-02-23 (I just fixed my post).
For example you can compare these 2 granules:
JPSS1_VIIRS.20260223T085401.L2.OC.NRT.nc
JPSS2_VIIRS.20260223T094801.L2.OC.NRT.nc

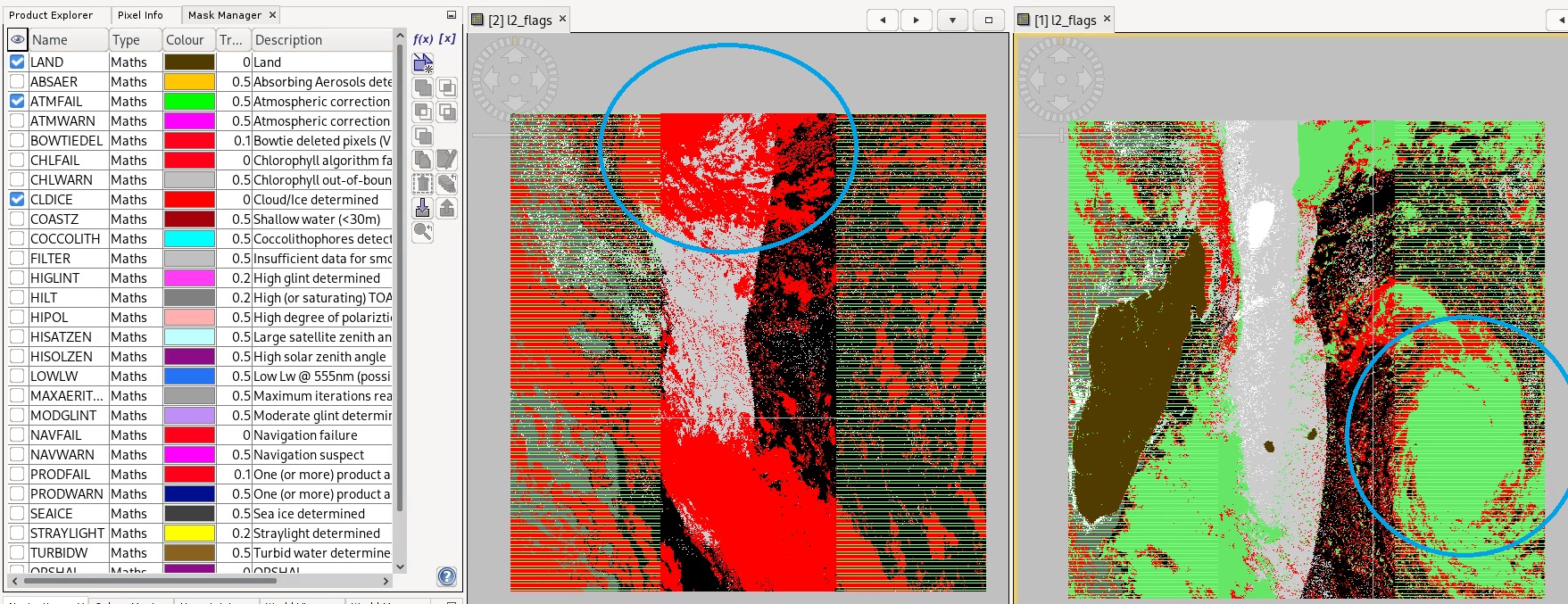

Analysis with SNAP: left NOAA-20 with coherent CLDICE, right NOAA-21 where strong clouds are not flagged CLDICE but seem instead flagged ATMFAIL:
I've been stepping through a debugger and found that the L1 mask is different between the examples you showed. When converting the L1 data to L2, there is a guard against atmospheric correction if the L1 record is masked already. In the JPSS1 data in the region you circled, atmospheric correction seems to be skipped because of this guard. In the region circled for the JPSS2 file, l2gen goes ahead with atmospheric correction at those pixels. It seems as though those pixels flagged ATMFAIL have radiance values that are not physical, so atmospheric correction fails.
