Mosaic window not rendering correctly

[treble]

I noticed that with the new SeaDAS 10 the 'Map Projection Definition' tab of the Raster --> Geometric --> Mosaic tool is not showing up correctly. I don't see the input fields, nor the world map. This is on both Mac and Windows versions. The other two tabs of Mosaic show up correctly.

I also noticed that the 'World Map' tool window is not showing up. The map doesn't display. The globe is showing in the 'World View' tool window. Maybe it is related since the 'Map Projection Definition' also displays a world map.

It is working on SeaDAS 8.4.1 and I also tested it on SNAP 13.

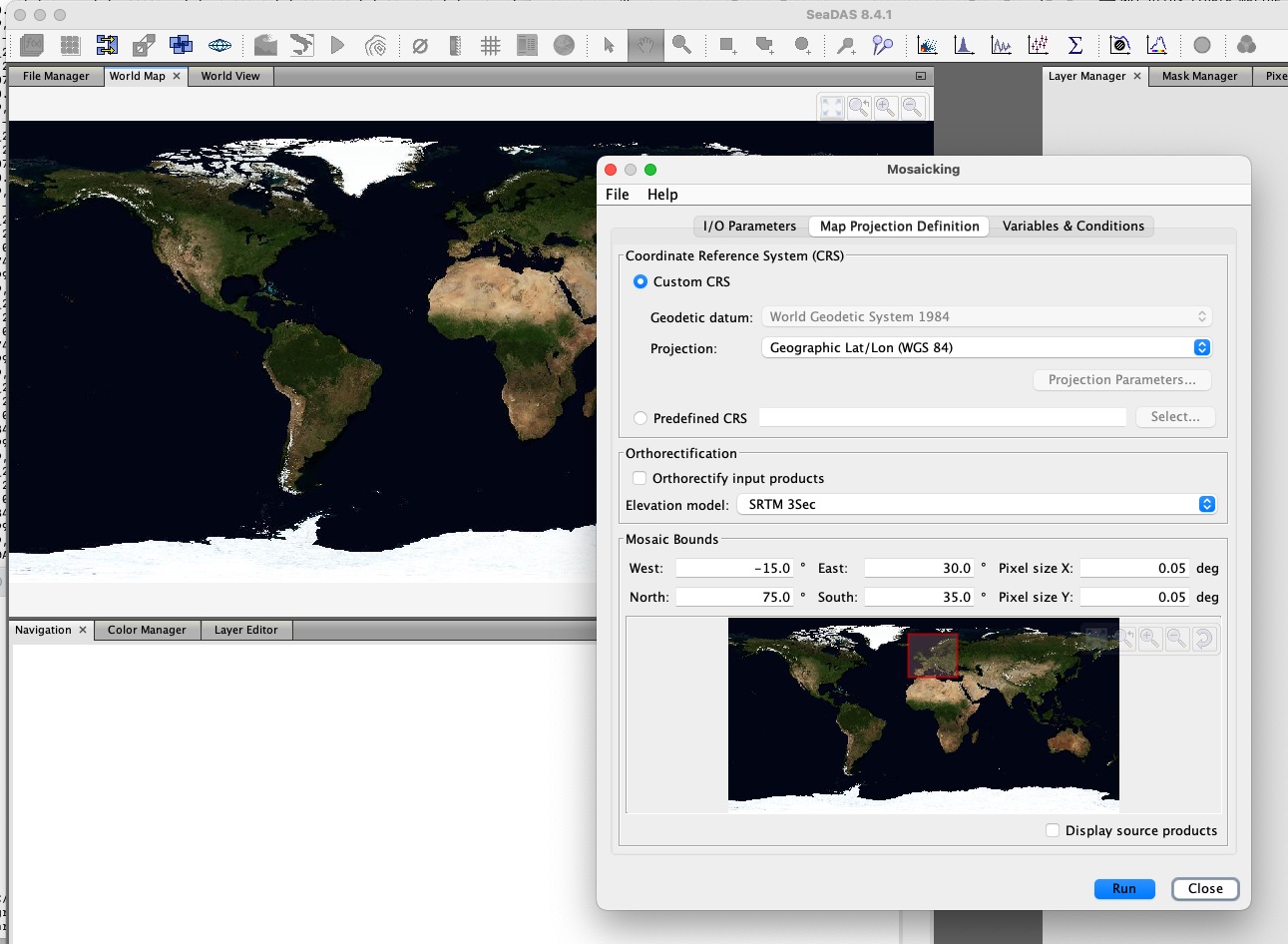

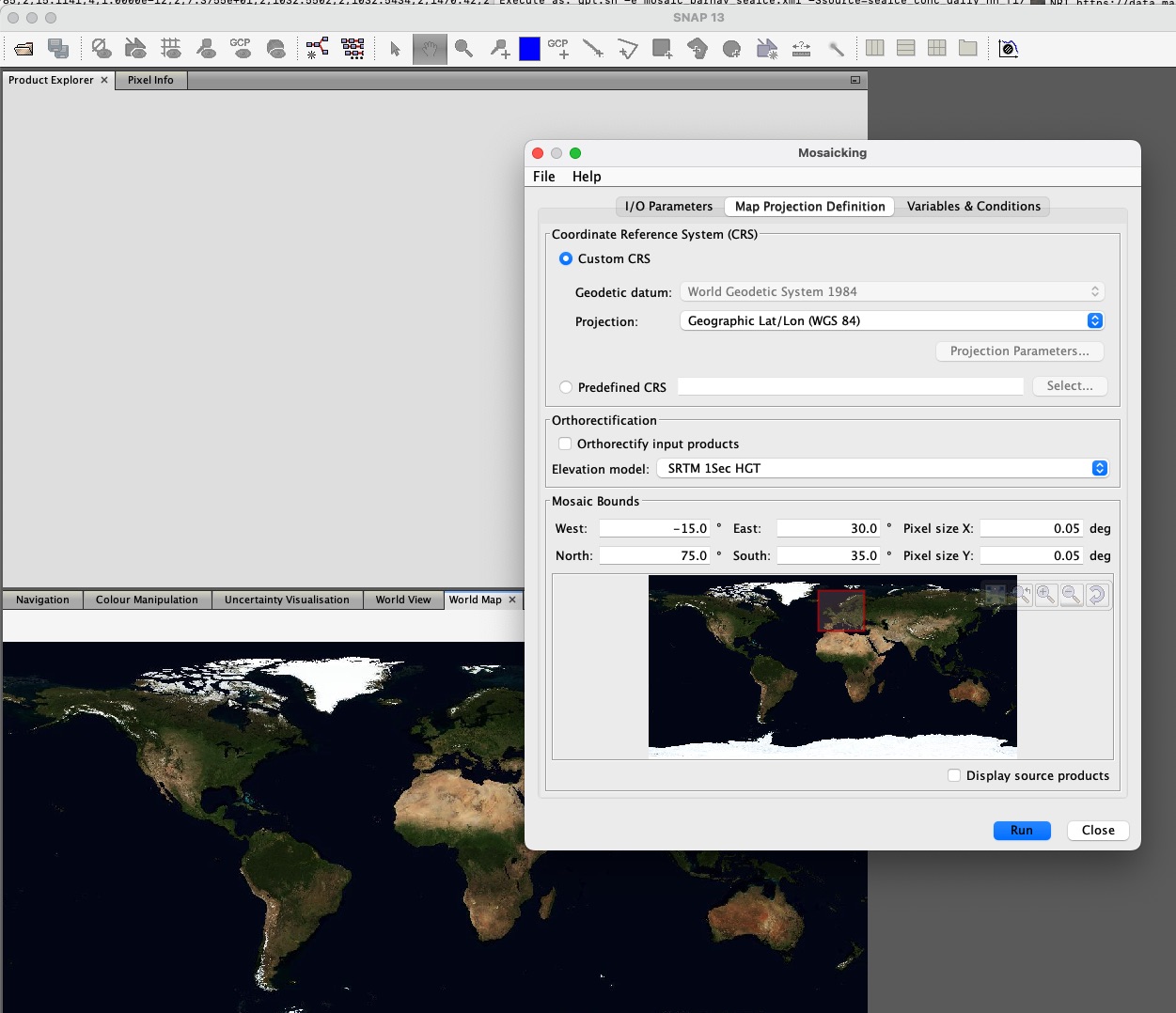

Attached screenshots of the working SeaDAS 8.4.1 and SNAP 13, and the not working SeaDAS 10. I 'tabbed' through the input fields on the last screenshot, the only way I was able to make them show up. Also below my SeaDAS 10 configuration.

The attachment Screenshot 2026-01-12 at 2.26.30 PM.jpeg is no longer available

Code: Select all

-----------------------------------------------------------
  Main Application Platform:
-----------------------------------------------------------
Application Version: SeaDAS 10.0.0
SNAP Engine Version: 12.0.1* (SeaDAS Platform modified)
SNAP Desktop Version: 12.0.1* (SeaDAS Platform modified)
SNAP Engine Build Date: 202510011940
SNAP Desktop Build Date: 202510011943
Installation Directory: /Applications/seadas-latest
Data Directory: /Users/treble/.seadas
Configuration: /Applications/seadas-latest/etc/snap.properties
VM Configuration: /Applications/seadas-latest/etc/seadas.conf
VM Configuration: /Applications/seadas-latest/etc/snap.conf
VM Configuration (gpt): /Applications/seadas-latest/bin/gpt.vmoptions
VM Configuration (pconvert): /Applications/seadas-latest/bin/pconvert.vmoptions
Runtime Configuration: /Users/treble/.seadas/etc/snap.properties
Runtime Configuration (SeaDAS Toolbox): /Users/treble/.seadas/etc/seadas.properties
JRE: OpenJDK Runtime Environment 21.0.8+9-LTS
JVM: OpenJDK 64-Bit Server VM by Eclipse Adoptium
Memory: 8192 MiB
OCSSWROOT (Environment Variable): /Applications/seadas-latest/ocssw
Python3 Version: Python 3.9.6 (default, Nov 10 2023, 13:38:27)
Python3 Directory: /usr/bin/python3
Python3 Requests Installed: YES
Earthdata Netrc Entry: YES


-----------------------------------------------------------
  SeaDAS Toolbox:
-----------------------------------------------------------
SeaDAS Toolbox Version: 10.0.0
SeaDAS Toolbox Build Date: 202510011948
Configuration: /Users/treble/.seadas/etc/seadas.properties
OCSSW Location: local
[OCSSW-Local] Root Directory: /Applications/seadas-latest/ocssw
[OCSSW-Local] Python3 Version: Python 3.9.6 (default, Nov 10 2023, 13:38:27)
[OCSSW-Local] Python3 Directory: /usr/bin/python3
[OCSSW-Local] Python3 Requests Installed: YES
[OCSSW-Local] Earthdata Netrc Entry: YES
[OCSSW-Local] Log Directory: /Users/treble


-----------------------------------------------------------
  NASA Science Processing (OCSSW):
-----------------------------------------------------------
OCSSWROOT=/Applications/seadas-latest/ocssw
OCDATAROOT=/Applications/seadas-latest/ocssw/share
l2gen version: msl12 9.11.0-V2025.5 (Aug 21 2025 23:38:09)
l2bin version: 8.0.3
l3bin version: 5.14
l3mapgen version: l3mapgen 2.4.0-V2025.5 (Aug 21 2025 23:36:53)
Installed Missions: ['aqua', 'seawifs', 'viirsn', 'viirsj1', 'viirsj2']


-----------------------------------------------------------
  General System and Software:
-----------------------------------------------------------
Operating system: MacOS 13.7.8
Java version: 11.0.24
Python3 version: 3.9.6
Python3 Path: /usr/bin/python3
Env:
   CC=gcc
   CXX=g++
   ELEMENTS=/Applications/seadas-latest/ocssw/var/seawifs
   EOS_LIB_PREFIX=macarm64
   FC=gfortran
   GCC_TUNE=
   HDFEOS_LIB=/Applications/seadas-latest/ocssw/opt/EOS/lib/macarm64
   HRPT_STATION_IDENTIFICATION_FILE=/Applications/seadas-latest/ocssw/share/seawifs/station/station_id.dat
   L2GEN_ANC=/Applications/seadas-latest/ocssw/var/anc
   LIB3_BIN=/Applications/seadas-latest/ocssw/opt/bin
   LIB3_CHECK=0
   LIB3_DIR=/Applications/seadas-latest/ocssw/opt
   LIB3_INC=/Applications/seadas-latest/ocssw/opt/include
   LIB3_LIB=/Applications/seadas-latest/ocssw/opt/lib
   NAVCTL=/Applications/seadas-latest/ocssw/share/seawifs/nav
   NAVQC=/Applications/seadas-latest/ocssw/share/seawifs/nav
   OCSSW_ARCH=macosx_arm64
   OCSSW_BIN=/Applications/seadas-latest/ocssw/bin
   OCSSW_DEBUG=0
   OCTS_REGISTRATION_TABLES=/Applications/seadas-latest/ocssw/share/octs/nav
   OCVARROOT=/Applications/seadas-latest/ocssw/var
   ORBCTL=/Applications/seadas-latest/ocssw/share/seawifs/nav
   PGSINC=/Applications/seadas-latest/ocssw/opt/EOS/include
   PGSLIB=/Applications/seadas-latest/ocssw/opt/EOS/lib/macarm64
   PROJ_DATA=/Applications/seadas-latest/ocssw/opt/share/proj
   PROJ_LIB=/Applications/seadas-latest/ocssw/opt/share/proj
   SWFTBL=/Applications/seadas-latest/ocssw/share/seawifs/qc
   SWTBL=/Applications/seadas-latest/ocssw/share/seawifs

[OB SeaDAS - knowles]

Thanks for your post and details regarding this issue. I just checked and can confirm that SeaDAS 10 does have this issue. SeaDAS 10 uses SNAP 12, whereas SeaDAS 8.4.1 used an early development version of SNAP 10. I'm glad to hear that SNAP 13 works regarding these issues which you pointed out. The next SeaDAS release (expected Spring of 2026) will use SNAP 13, so most likely this will fix these World Map issues.

[treble]

I didn't realize SeaDAS was using SNAP 12. I just checked the Mosaiking window with SNAP 12 and SNAP 11. For both version the window comes up fine. The World Map shows up as well. So I am not sure if it is a SNAP issue... Unless they fixed this bug later in SNAP and SeaDAS 10 is using an early release again...

It is very annoying since we use this tool a lot. Hope you can figure out the issue.

[OB SeaDAS - knowles]

Thanks for checking against SNAP 12 and we do apologize for the inconvenience and appreciate your use of SeaDAS.

SeaDAS 10 specifically used SNAP 12.0.1 (the official SNAP release tag). However, there were significant issues/challenges with achieving the successful integration of SNAP 12 into SeaDAS 10 (as SNAP and SeaDAS have significantly evolved and diverged).

We do remain hopeful that the issues you mentioned will get resolved with the next SeaDAS release.
